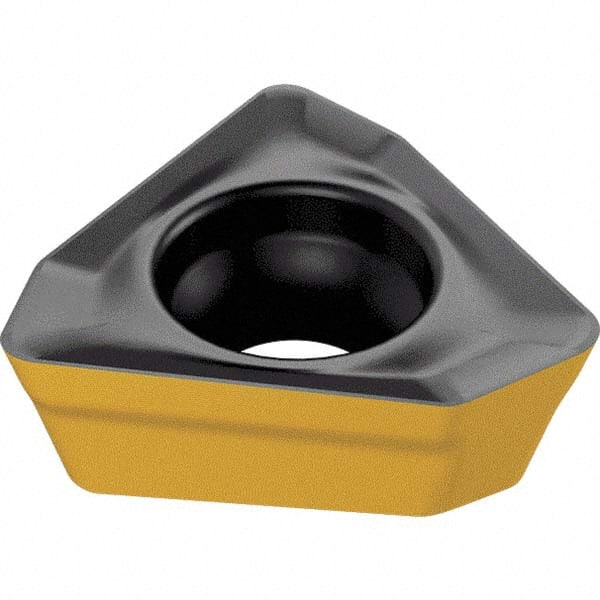

Iscar - HM390TPKT0502PDR IC808 Carbide Milling Insert
Item #: 61034922
Brand: Iscar
Model #: 3346006
Product Specifications
| Insert Style | TPKT |
| Insert Size | 0502 |
| Material | Carbide |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 5.26 |
| Length (Decimal Inch) | 0.2070 |
| Inscribed Circle (mm) | 3.94 |
| Inscribed Circle (Decimal Inch) | 0.1551 |
| Thickness (mm) | 2.10 |
| Thickness (Decimal Inch) | 0.0826 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1377 |
| Cutter Series Compatibility | TPKT |
