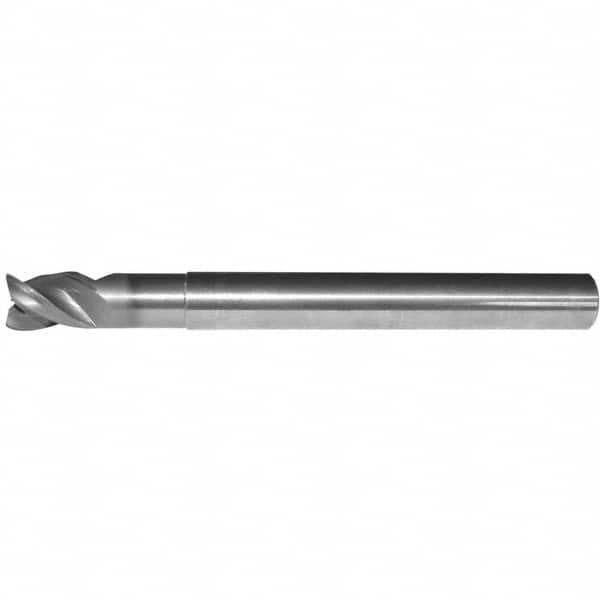

Corner Radius End Mill: 0.3937″ Dia, 0.5906″ LOC, 0.0787″ Radius, 3 Flutes, Solid Carbide 38 ° Helix, Bright/Uncoated, Corner Radius End, Series ABDE
Item #: 61034575
Brand: Kennametal
Model #: 5414456
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Length of Cut (mm) | 15.00 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 38 |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (mm) | 10.00 |
| Neck Diameter (mm) | 9.50 |
| Neck Diameter (Decimal Inch) | 0.3740 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | ABDE |
| Single Or Double End | Single |
| Coating/Finish | Bright/Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5906 |
