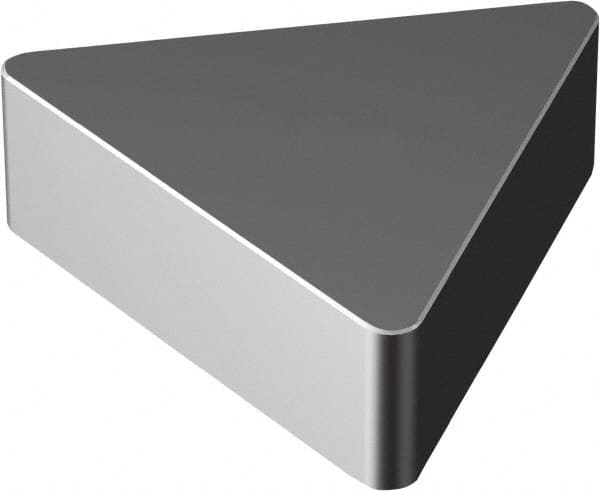

Sandvik Coromant - TNGA432 Grade 650 Ceramic Turning Insert - TiN Finish, 60° Triangle, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 60979499
Brand: Sandvik Coromant
Model #: 5753787
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | TNGA |
| Insert Size | 432 |
| Material | Ceramic |
| Length (mm) | 21.20 |
| Length (Decimal Inch) | 0.8345 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 650 |
| Coating | TiN |
| Insert Length (Decimal Inch) | 0.8345 |
| OverallLength (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8660 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | TNGA 22 04 08T01020 650 |
| Relief Angle | 0 |
| Included Angle | 60 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
