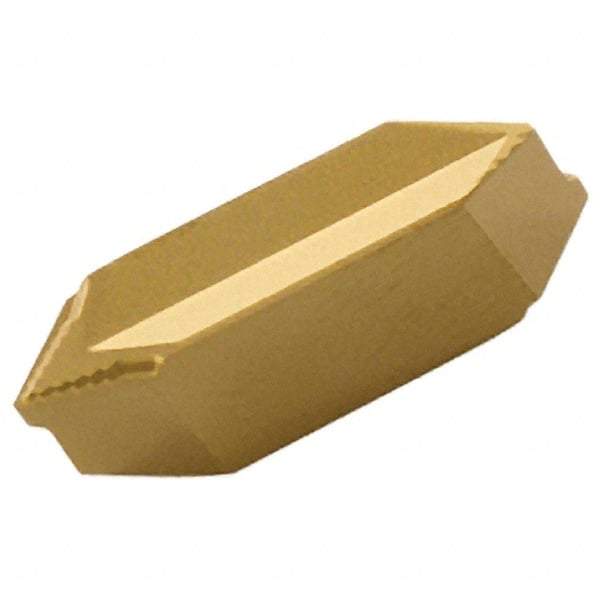

Iscar - TIP4 MT Grade IC08, Internal/External Partial Profile 60° Threading Insert - 16 TPI Ext Pitch, Neutral Insert, Uncoated, Carbide
Item #: 60931433
Brand: Iscar
Model #: 6403757
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TIP |
| Insert Size | 4 |
| Thread Type | Internal/External |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Thread Standard | Partial Profile 60 Degrees |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC08 |
| External Pitch/TPI | 16 TPI |
| Coating | Uncoated |
| Material | Carbide |
| Coating Process | Uncoated |
| ISO Number | TIP 4MT-0.20 |
| Maximum Corner Radius (mm) | 0.20 |
| Maximum Corner Radius (Decimal Inch) | 0.0080 |
| Width of Cutting Tip (mm) | 4.00 |
| Width of Cutting Tip (Decimal Inch) | 0.1570 |
| Chipbreaker | MT |
| Manufacturers Catalog Number | 6403757 |
