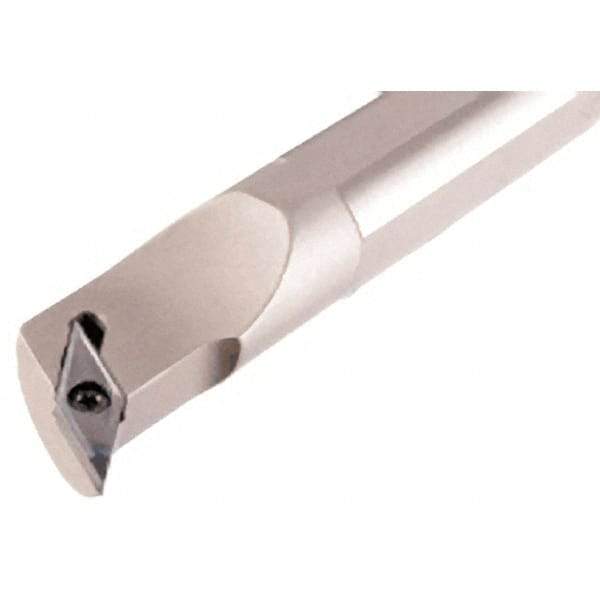

Iscar - 1.22" Min Bore Diam, 12" OAL, 1" Shank Diam, S-SVQC Indexable Boring Bar - 2.44" Max Bore Depth, VC.. 33.. Insert, Screw Holding Method
Item #: 60923349
Brand: Iscar
Model #: 3600838
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SVQC |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.2200 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.4400 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | VC.. 33.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.6300 |
| Rake Angle | -5 |
| Complete Insert Compatibility | VCGT 33-.004-AS; VCGT 330-AS; VCGT 331-AS; VCGT 331D; VCGT 332-AS; VCGT 332D; VCGT 333-AS; VCMT 330-SM; VCMT 331-14; VCMT 331-SM; VCMT 331T; VCMT 332-14; VCMT 332-SM; VCMT 333-SM; VCMW 331 |
| Toolholder Material | Steel |
