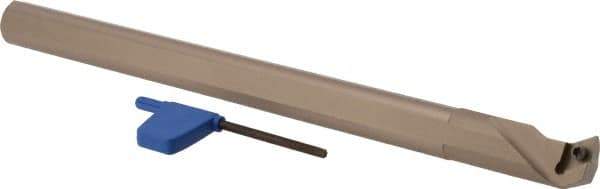

Iscar - 0.985" Min Bore Diam, 10" OAL, 3/4" Shank Diam, S-SDUC Indexable Boring Bar - 1.77" Max Bore Depth, DC.. 3 Insert, Screw Holding Method
Item #: 60923323
Brand: Iscar
Model #: 3600835
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SDUC |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.9850 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.7700 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | DC.. 3 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Rake Angle | -6 |
| Complete Insert Compatibility | DCGT 3-.004-AS; DCGT 3-0; DCGT 3-0-AS; DCGT 3-1; DCGT 3-1-AS; DCGT 3-1-SM; DCGT 3-2-AS; DCMT 3-0; DCMT 3-0-SM; DCMT 3-1; DCMT 3-1-14; DCMT 3-1-SM; DCMT 3-2; DCMT 3-2-14; DCMT 3-2-SM; DCMT 3-3-SM; DCMW 3-1 |
| Toolholder Material | Steel |
