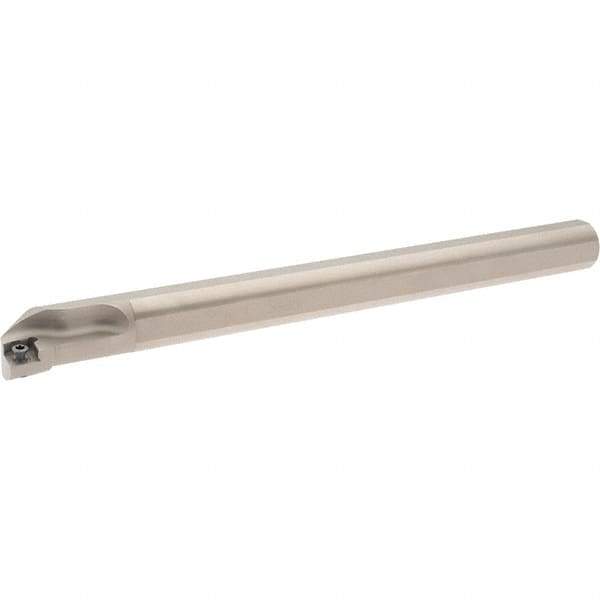

Iscar - 1.22" Min Bore Diam, 12" OAL, 1" Shank Diam, S-SCLC Indexable Boring Bar - 2.17" Max Bore Depth, CC.T 43.. Insert, Screw Holding Method
Item #: 60923281
Brand: Iscar
Model #: 3600832
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SCLC |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.2200 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.1700 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | CC.T 43.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.6300 |
| Rake Angle | -5 |
| Complete Insert Compatibility | CCGT 430-AS; CCGT 431-AS; CCGT 432-AF; CCGT 432-AS; CCMT 431-SM; CCMT 432-14; CCMT 432-SM; CCMT 432-WG |
