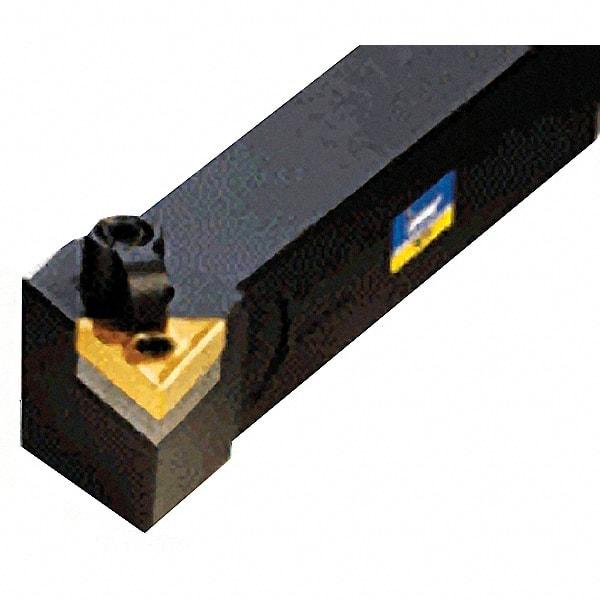

Iscar - MTJN, Left Hand Cut, 93° Lead Angle, 1" Shank Height x 1" Shank Width, Negative/Positive Rake Indexable Turning Toolholder - 6" OAL, TN..43.. Insert Compatibility, Series Isoturn
Item #: 60921681
Brand: Iscar
Model #: 3600583
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | MTJN |
| Rake | Negative; Positive |
| Rake Angle | -5 (Axial); 5 (Radial) |
| Series | Isoturn |
| Lead Angle | 93 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | TN..43.. |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.1900 |
