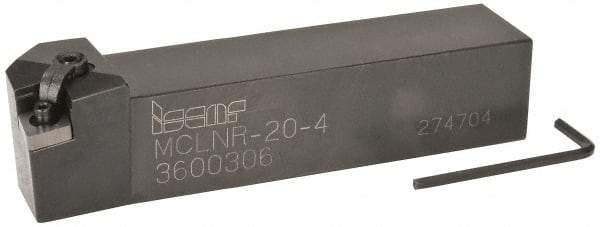

Iscar - MCLN, Right Hand Cut, 5° Lead Angle, 1-1/4" Shank Height x 1-1/4" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, CN.. Insert Compatibility, Series Comlock
Item #: 60920642
Brand: Iscar
Model #: 3600306
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | MCLN |
| Rake | Negative |
| Rake Angle | 0 |
| Series | Comlock |
| Lead Angle | 5 |
| Shank Width (Inch) | 1-1/4 |
| Shank Width (mm) | 31.75 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | CN.. |
| Multi-Use Tool | No |
| Multi-Use Application | Turning |
| Insert Holding Method | Pin & Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (Decimal Inch) | 1.1900 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
