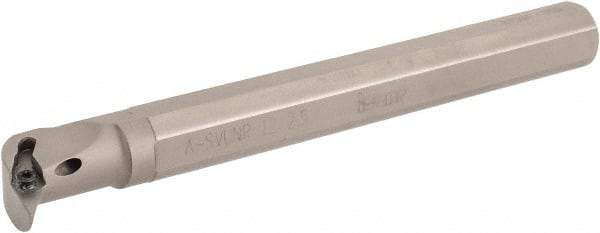

Iscar - 1.04" Min Bore Diam, 7" OAL, 3/4" Shank Diam, Indexable Boring Bar - 1.2" Max Bore Depth, VN.. 2.5 Insert, Screw Holding Method
Item #: 60919305
Brand: Iscar
Model #: 3601217
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.0400 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.2000 |
| Overall Length (Decimal Inch) | 7.0000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | VN.. 2.5 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Lead Angle | -7 |
| Center to Cutting Edge (Decimal Inch) | 0.6300 |
