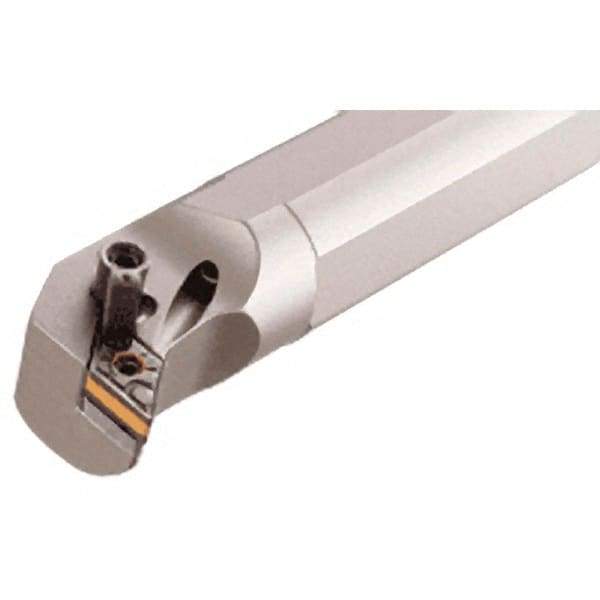

Iscar - 1.58" Min Bore Diam, 12" OAL, 1-1/4" Shank Diam, A-MDUN Indexable Boring Bar - 1.77" Max Bore Depth, DNMG 33.. Insert, Clamp Holding Method
Item #: 60919107
Brand: Iscar
Model #: 3601244
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MDUN |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.5800 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.7700 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | DNMG 33.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.8800 |
| Rake Angle | -6 |
| Complete Insert Compatibility | DNMG 330-NF; DNMG 331-NF; DNMG 331-PP; DNMG 331-SF; DNMG 331-TF; DNMG 332-GN; DNMG 332-NF; DNMG 332-PP; DNMG 333-GN; DNMG 333-TF |
