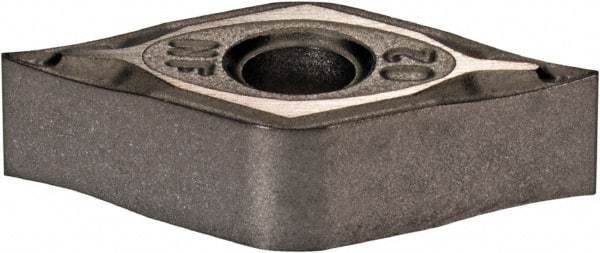

Iscar - DNMG330 NF Grade IC20N Carbide Turning Insert - Uncoated, 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 0.0079" Corner Radius
Item #: 60885217
Brand: Iscar
Model #: 5502808
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 330 |
| Material | Carbide |
| Length (mm) | 11.63 |
| Length (Decimal Inch) | 0.4579 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | IC20N |
| Coating | Uncoated |
| Chip Breaker | NF |
| Rake | Positive |
| Relief Angle | 0 |
| Included Angle | 55 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
