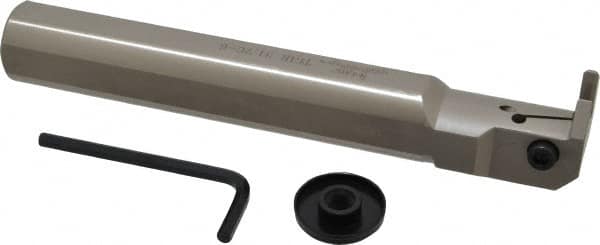

Iscar - TGI, Internal, Right Hand, 0.7" Max Depth of Cut, 0.236 to 1/4" Groove Width, Indexable Grooving Tool Holder - TGMF Insert Compatibility, 1-1/4" Shank Width, 8.65" OAL, Through Coolant
Item #: 60879384
Brand: Iscar
Model #: 2850061
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7000 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 8.6500 |
| Toolholder Style | TGI |
| Insert Compatibility | TGMF |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Series | Top Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (Decimal Inch) | 1.8500 |
| Center to Cutting Edge (Decimal Inch) | 1.1400 |
| Head Length (Decimal Inch) | 2.0000 |
| Complete Insert Compatibility | TGMF 6.. |
