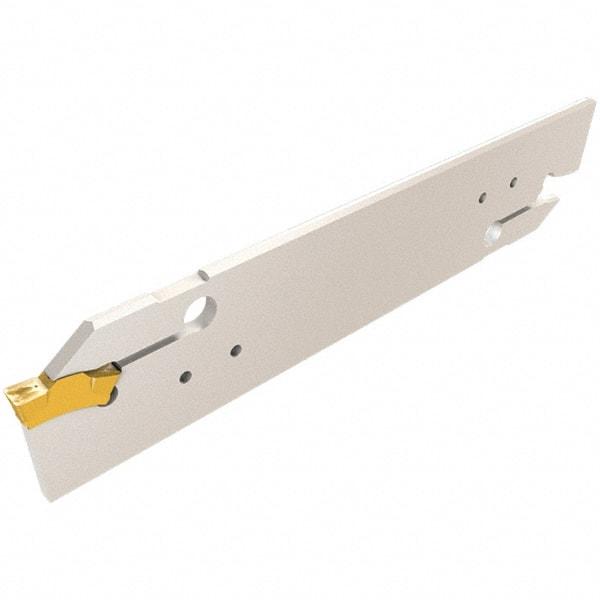

Iscar - 4 to 5mm Groove Width, 21mm Max Depth of Cut, Right Hand Cut, TGHN Indexable Grooving Blade - TGMF 4.., TGMF/P 5.. Insert Style, Series Top Grip
Item #: 60879020
Brand: Iscar
Model #: 2850039
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 4.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 21.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8268 |
| Blade Style | TGHN |
| Series | Top Grip |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Style | TGMF 4..; TGMF/P 5.. |
