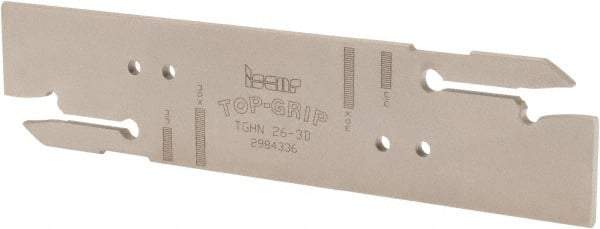

Iscar - 3" Groove Width, 15mm Max Depth of Cut, Right Hand Cut, TGHN Indexable Grooving Blade - TGMF 3.. Insert Style, Series Top Grip
Item #: 60878865
Brand: Iscar
Model #: 2850035
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Blade Style | TGHN |
| Series | Top Grip |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (Decimal Inch) | 0.0940 |
| Maximum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Style | TGMF 3.. |
