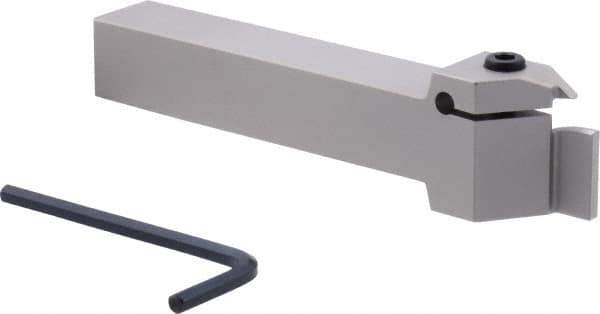

Iscar - TGD, External, Right Hand, 0.683" Max Depth of Cut, 0.157 to 0.197" Groove Width, Indexable Grooving Tool Holder - TGM... Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 5" OAL
Item #: 60878543
Brand: Iscar
Model #: 2850106
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6830 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | TGD |
| Insert Compatibility | TGM... |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | Top Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Head Length (Decimal Inch) | 1.2800 |
| Complete Insert Compatibility | TGMF 4..; TGMF 5..; TGMP 5.. |
