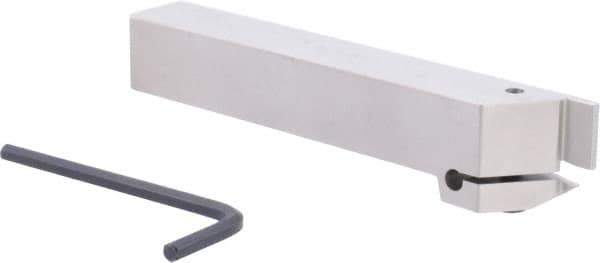

Iscar - TGD, External, Left Hand, 0.29" Max Depth of Cut, 0.118 to 1/8" Groove Width, Indexable Grooving Tool Holder - TGMF 3.. Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 5" OAL
Item #: 60878105
Brand: Iscar
Model #: 2850113
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2900 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | TGD |
| Insert Compatibility | TGMF 3.. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | Top Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Head Length (Decimal Inch) | 1.3700 |
