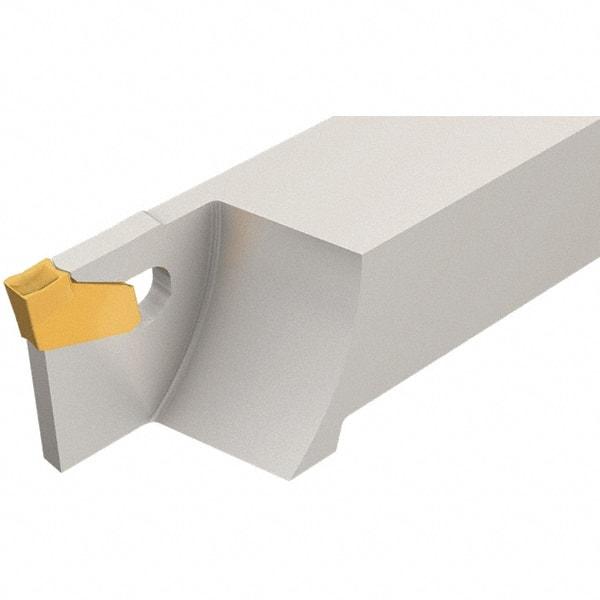

Iscar - SGTF, Left Hand Cut, 1.13" Max Workpc Diam, Indexable Cutoff Toolholder - 3/8" Shank Width, 3/8" Shank Height, 3" OAL
Item #: 60825064
Brand: Iscar
Model #: 2300782
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Workpiece Diameter (Decimal Inch) | 1.1300 |
| Series | Self Grip |
| Toolholder Style | SGTF |
| Overall Length (Decimal Inch) | 3.0000 |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Shank Height (Decimal Inch) | 0.3750 |
| Insert Holding Method | Self Grip |
| Through Coolant | No |
| Minimum Insert Width (Decimal Inch) | 0.0710 |
| Maximum Insert Width (Decimal Inch) | 0.1060 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3750 |
| Head Length (Decimal Inch) | 0.7000 |
| Height to Shank Top (Decimal Inch) | 0.2500 |
| Blade Width (Decimal Inch) | 0.0630 |
