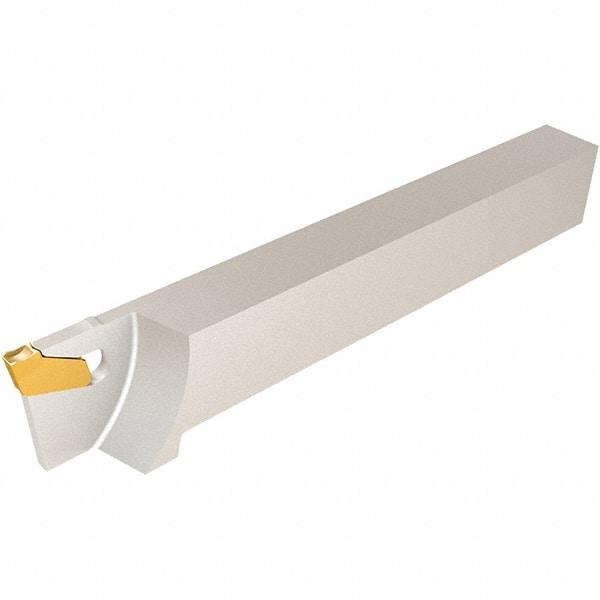

Iscar - External Thread, 0.5906" Max Depth of Cut, 1.6mm Min Groove Width, 110mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 12mm Shank Height x 12mm Shank Width, GF.. Insert Style, SGTF Toolholder Style, Series Self-Grip
Item #: 60824687
Brand: Iscar
Model #: 2300790
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Minimum Groove Width (Decimal Inch) | 0.0630 |
| Minimum Groove Width (mm) | 1.60 |
| Maximum Groove Width (Decimal Inch) | 0.0630 |
| Maximum Groove Width (mm) | 1.60 |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.00 |
| Series | Self-Grip |
| Toolholder Style | SGTF |
| Insert Compatibility | GF.. |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Complete Insert Compatibility | GFL 1.6 - 15D; GFL 1.6 - 8D; GFL 1.6J - 6D; GFL 1.6JS - 15D; GFL 1.6JS - 6D; GFN 1.6; GFN 1.6A; GFN 1.6J; GFR 1.6 - 15D; GFR 1.6 - 8D; GFR 1.6JS - 15D; GFR 1.6JS - 6D; GFR 1.6S - 8D |
