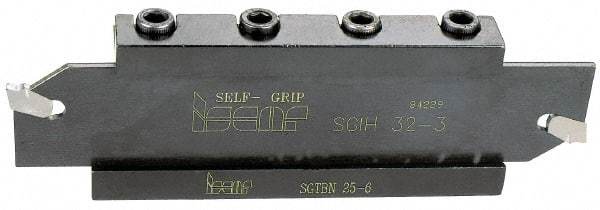

Iscar - Tool Block Style SGTBU, 52.6mm Blade Height, 130mm OAL, 81mm OAH, Indexable Cutoff Blade Tool Block - 40mm Shank Height, 41mm Shank Width, Reversible, Through Coolant
Item #: 60824562
Brand: Iscar
Model #: 2300776
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tool Block Style | SGTBU |
| Blade Height (mm) | 52.60 |
| Blade Height (Decimal Inch) | 2.0709 |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Overall Height (mm) | 81.00 |
| Overall Height (Decimal Inch) | 3.1890 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Shank Width (mm) | 41.00 |
| Shank Width (Decimal Inch) | 1.6142 |
| Through Coolant | Through Coolant |
| Reversible | Yes |
| Modular | Yes |
| Overall Width (mm) | 66.00 |
| Overall Width (Decimal Inch) | 2.5984 |
| Blade Width (Decimal Inch) | 0.3100 |
| Head Length/Projection (Decimal Inch) | 0.3150 |
