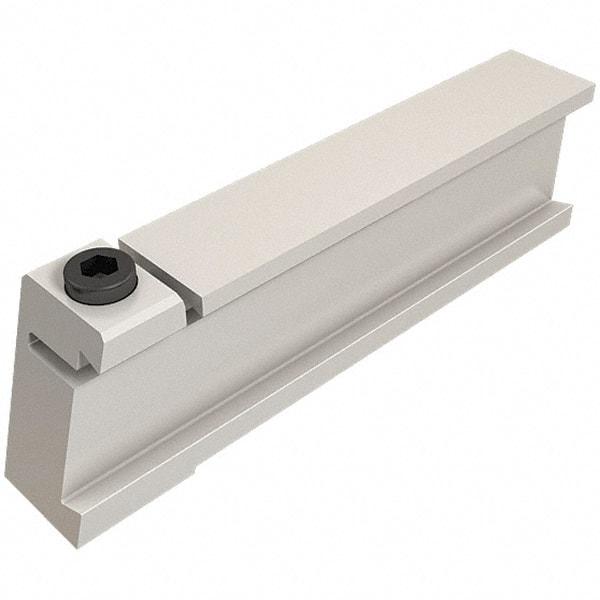

Iscar - Tool Block Style SGTBR, 19mm Blade Height, 100mm OAL, Indexable Cutoff Blade Tool Block - 25mm Shank Height, 19mm Shank Width, Series Tool Blocks
Item #: 60824307
Brand: Iscar
Model #: 2300749
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tool Block Style | SGTBR |
| Blade Height (mm) | 19.00 |
| Blade Height (Decimal Inch) | 0.7480 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width (mm) | 19.00 |
| Shank Width (Decimal Inch) | 0.7480 |
| Through Coolant | NonThrough Coolant |
| Reversible | No |
| Modular | No |
| Series | Tool Blocks |
| Overall Width (mm) | 19.00 |
| Overall Width (Decimal Inch) | 0.7480 |
| Complete Blade Compatibility | CGHL 32-P8DG; CGHR 32-P8DG; DGFH 32-1.4; DGFH 32-2; DGFH 32-3; DGFH 32-4; DGFH 32C-3; PCHBL 32-24R; PCHBL 32-34R; PCHBR 32-24L; PCHBR 32-34L; SGFFH 35-L-2; SGFFH 35-R-2; SGFFH 45-L-2; SGFFH 45-R-2; SGFFH 60-L-2; SGFH 32-1; SGFH 32-2; SGFH 32-3; SGFH 32-4; |
| Head Length/Projection (mm) | 100.00 |
| Head Length/Projection (Decimal Inch) | 3.9370 |
| Complete Insert Compatibility | GFL 1.6 - 8D; GFL 1.6 -15D; GFL 1.6J - 6D; GFL 1.6JS- 6D; GFL 1.6JS-15D; GFN 1.6; GFN 1.6A; GFN 1.6J; GFR 1.6 - 8D; GFR 1.6 -15D; GFR 1.6JS- 6D; GFR 1.6JS-15D; GFR 1.6S - 8D |
