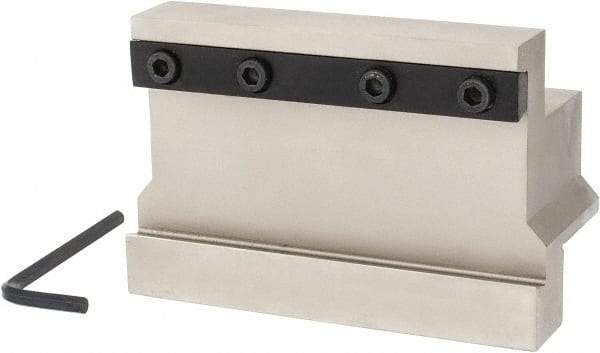

Iscar - Tool Block Style SGTBK, 52.6mm Blade Height, 135mm OAL, 90mm OAH, Indexable Cutoff Blade Tool Block - 40mm Shank Height, 35mm Shank Width, Series Tool Blocks
Item #: 60824109
Brand: Iscar
Model #: 2300722
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tool Block Style | SGTBK |
| Blade Height (mm) | 52.60 |
| Blade Height (Decimal Inch) | 2.0709 |
| Overall Length (mm) | 135.00 |
| Overall Length (Decimal Inch) | 5.3150 |
| Overall Height (mm) | 90.00 |
| Overall Height (Decimal Inch) | 3.5433 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Shank Width (mm) | 35.00 |
| Shank Width (Decimal Inch) | 1.3780 |
| Through Coolant | NonThrough Coolant |
| Reversible | No |
| Modular | No |
| Series | Tool Blocks |
| Overall Width (mm) | 60.00 |
| Overall Width (Decimal Inch) | 2.3622 |
| Complete Blade Compatibility | CGHL 32-P8DG; CGHR 32-P8DG; DGFH 32-1.4; DGFH 32-2; DGFH 32-3; DGFH 32-4; DGFH 32C-3; PCHBL 32-24R; PCHBL 32-34R; PCHBR 32-24L; PCHBR 32-34L; SGFFH 35-L-2; SGFFH 35-R-2; SGFFH 45-L-2; SGFFH 45-R-2; SGFFH 60-L-2; SGFH 32-1; SGFH 32-2; SGFH 32-3; SGFH 32-4; |
| Head Length/Projection (mm) | 135.00 |
| Head Length/Projection (Decimal Inch) | 5.3150 |
| Complete Insert Compatibility | GDMF 808; GDMU 808; GDMY 808; GIDA 80-40; GIDA 80-40-D; GIDA 80-40CB-D; GIDA 80-40YZ; GIDA 80-40YZ-D; GIF 8.00E-1.20; GIF 8.00E-0.80; GIF 8.00E-0.40 |
