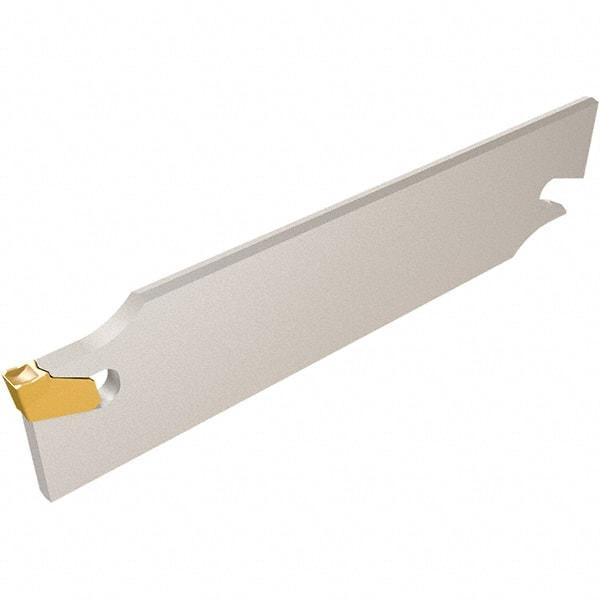

Iscar - 0.461 to 0.512" Groove Width, Right Hand Cut, SGFH Indexable Grooving Blade - 0.437 Seat Size, GFN-A, GFN-C, GFN-J, GFN-M, GFN-U, GFN-W, GFR/L-C, GFR/L-J, GFR/L-W, GFR-U Insert Style, Series Self-Grip
Item #: 60821980
Brand: Iscar
Model #: 2300559
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (Decimal Inch) | 0.4610 |
| Blade Style | SGFH |
| Series | Self-Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 9.8400 |
| Blade Height (Decimal Inch) | 2.0700 |
| Blade Width (Decimal Inch) | 0.4370 |
| Maximum Groove Width (Decimal Inch) | 0.5120 |
| Overall Length (Decimal Inch) | 10.2360 |
| Manufacturers Catalog Number | SGFHR 53-12 |
| Cutting Height (Decimal Inch) | 1.7720 |
| Insert Style | GFN-A; GFN-C; GFN-J; GFN-M; GFN-U; GFN-W; GFR/L-C; GFR/L-J; GFR/L-W; GFR-U |
| Insert Seat Size | 0.4370 |
| Complete Insert Compatibility | GFL 1.2J - 10D; GFL 1.2JS - 10D; GFL 1.2JS - 15D; GFL 1.6 - 15D; GFL 1.6 - 8D; GFL 1.6J - 6D; GFL 1.6J - 8D; GFL 1.6JS - 15D; GFL 1.6JS - 6D; GFL 2 - 15D; GFL 2 - 4D; GFL 2 - 6D; GFL 2 - 8D; GFL 2.4 - 8D; GFL 2J - 6D; GFL 2JS - 10D; GFL 2JS - 4D; GFL 2S - |
| MSC/Manufacturer Number | 2300559 |
