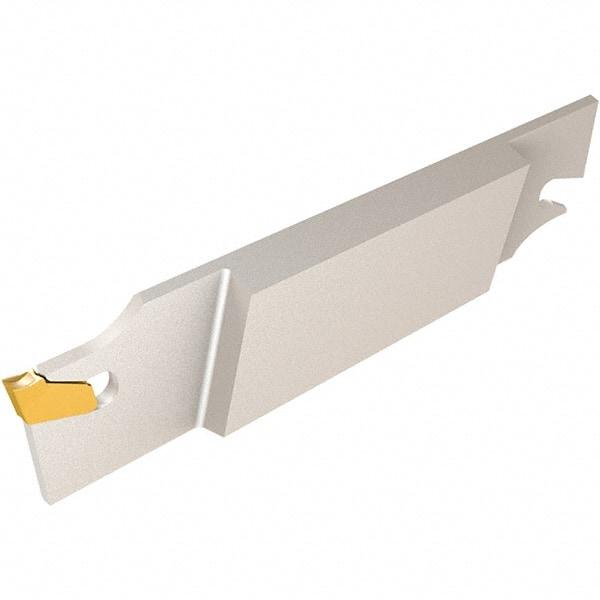

Iscar - 2.7 to 3.53mm Groove Width, Right Hand Cut, SGFH Indexable Grooving Blade - GFN-A, GFN-C, GFN-J, GFN-M, GFN-U, GFN-W, GFR-U, GFR/L-C, GFR/L-J, GFR/L-W Insert Style, Series Self-Grip
Item #: 60821865
Brand: Iscar
Model #: 2301080
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 2.70 |
| Minimum Groove Width (Decimal Inch) | 0.1063 |
| Blade Style | SGFH |
| Series | Self-Grip |
| Maximum Workpiece Diameter (mm) | 60.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.3622 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 8.00 |
| Blade Width (Decimal Inch) | 0.3150 |
| Maximum Groove Width (mm) | 3.53 |
| Maximum Groove Width (Decimal Inch) | 0.1390 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Style | GFN-A; GFN-C; GFN-J; GFN-M; GFN-U; GFN-W; GFR-U; GFR/L-C; GFR/L-J; GFR/L-W |
| Complete Insert Compatibility | GFN 3A; GFN 3J; GFN 3JS; GFN 3M; GFN 3U; GFN 3US; GFN 3W |
