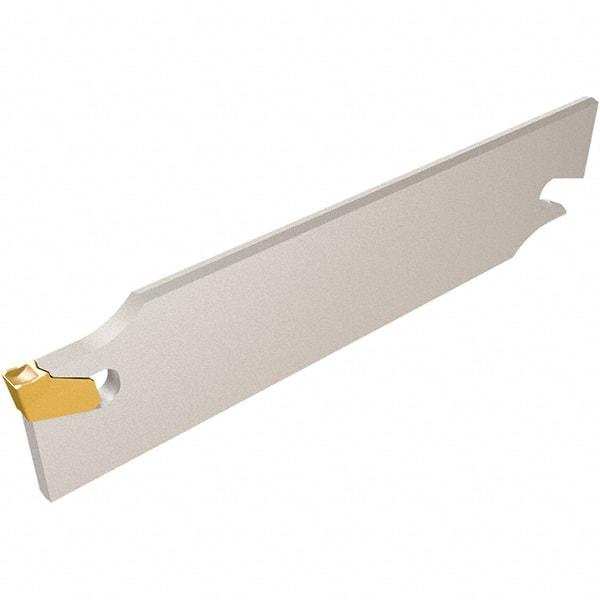

Iscar - 11.7 to 13mm Groove Width, Left Hand Cut, SGFH Indexable Grooving Blade - GFN-W Insert Style, Series Self-Grip
Item #: 60821725
Brand: Iscar
Model #: 2300553
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 11.70 |
| Minimum Groove Width (Decimal Inch) | 0.4606 |
| Blade Style | SGFH |
| Series | Self-Grip |
| Maximum Workpiece Diameter (mm) | 250.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 9.8425 |
| Blade Height (mm) | 52.60 |
| Blade Height (Decimal Inch) | 2.0709 |
| Blade Width (mm) | 11.10 |
| Blade Width (Decimal Inch) | 0.4370 |
| Maximum Groove Width (mm) | 13.00 |
| Maximum Groove Width (Decimal Inch) | 0.5118 |
| Overall Length (mm) | 260.00 |
| Overall Length (Decimal Inch) | 10.2362 |
| Insert Style | GFN-W |
| Complete Insert Compatibility | GFN 12W |
