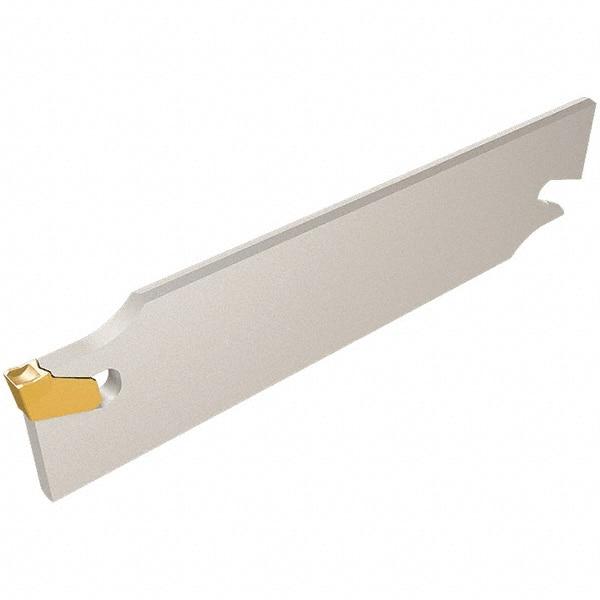

Iscar - 1.2598" Blade Height, 0.315" Blade Width, 5.9055" OAL, Left Hand Cut, Double End Indexable Cut-Off Blade - SGFH Blade, Self Grip Series
Item #: 60821709
Brand: Iscar
Model #: 2300548
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Left Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 8.00 |
| Blade Width (Decimal Inch) | 0.3150 |
| Blade Overall Length (mm) | 150.00 |
| Blade Overall Length (Decimal Inch) | 5.9055 |
| Blade Style | SGFH |
| Insert Style | GF.. 9 |
| Insert Width (mm) | 9.53 |
| Insert Width (Decimal Inch) | 0.3750 |
| Series | Self Grip |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 4.7200 |
| Cutting Height (mm) | 24.80 |
| Cutting Height (Decimal Inch) | 0.9764 |
| Minimum Insert Width (mm) | 9.50 |
| Minimum Insert Width (Decimal Inch) | 0.3740 |
| Maximum Insert Width (mm) | 9.50 |
| Maximum Insert Width (Decimal Inch) | 0.3740 |
