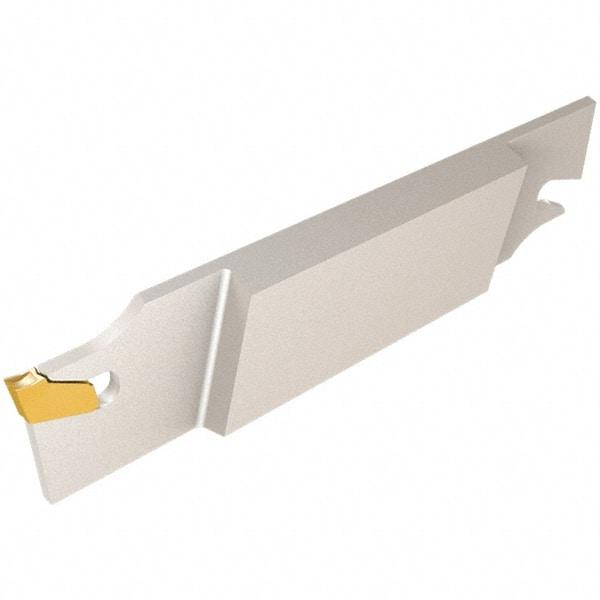

Iscar - 1.8 to 2.69mm Groove Width, Left Hand Cut, SGFH Indexable Grooving Blade - GFN-A, GFN-C, GFN-J, GFN-W, GFR/L-C, GFR/L-J, GFR/L-W Insert Style, Series Self-Grip
Item #: 60821568
Brand: Iscar
Model #: 2310021
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 1.80 |
| Minimum Groove Width (Decimal Inch) | 0.0709 |
| Blade Style | SGFH |
| Series | Self-Grip |
| Maximum Workpiece Diameter (mm) | 42.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.6535 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 8.00 |
| Blade Width (Decimal Inch) | 0.3150 |
| Maximum Groove Width (mm) | 2.69 |
| Maximum Groove Width (Decimal Inch) | 0.1059 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Style | GFN-A; GFN-C; GFN-J; GFN-W; GFR/L-C; GFR/L-J; GFR/L-W |
| Complete Insert Compatibility | GFL 2J - 6D; GFL 2JS - 4D; GFN 2.4J; GFN 2A; GFN 2J; GFN 2W; GFR 2J - 6D; GFR 2JS - 4D; GFR 2JS - 6D; GFR 2W - 6D |
