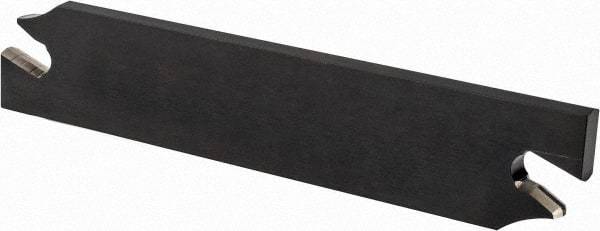

Iscar - 7.4 to 8.5mm Groove Width, Neutral Cut, SGFH Indexable Grooving Blade - GFN-C Insert Style, Series Self-Grip
Item #: 60821345
Brand: Iscar
Model #: 2300535
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 7.40 |
| Minimum Groove Width (Decimal Inch) | 0.2913 |
| Blade Style | SGFH |
| Series | Self-Grip |
| Maximum Workpiece Diameter (mm) | 190.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 7.4803 |
| Blade Height (mm) | 52.60 |
| Blade Height (Decimal Inch) | 2.0709 |
| Blade Width (mm) | 6.80 |
| Blade Width (Decimal Inch) | 0.2677 |
| Maximum Groove Width (mm) | 8.50 |
| Maximum Groove Width (Decimal Inch) | 0.3346 |
| Overall Length (mm) | 190.00 |
| Overall Length (Decimal Inch) | 7.4803 |
| Insert Style | GFN-C |
| Complete Insert Compatibility | GFN 8 |
