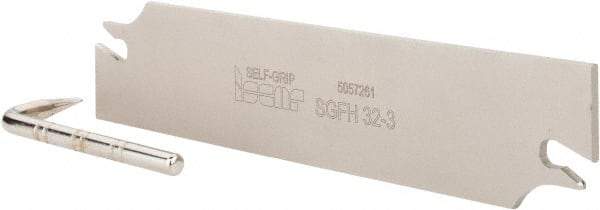

Iscar - 1.2598" Blade Height, 0.0945" Blade Width, 5.9055" OAL, Right Hand Cut, Double End Indexable Cut-Off Blade - SGFH Blade, Self Grip Series
Item #: 60821188
Brand: Iscar
Model #: 2300524
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Right Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 2.40 |
| Blade Width (Decimal Inch) | 0.0945 |
| Blade Overall Length (mm) | 150.00 |
| Blade Overall Length (Decimal Inch) | 5.9055 |
| Blade Style | SGFH |
| Insert Style | GF.. 3 |
| Insert Width (mm) | 3.00 |
| Insert Width (Decimal Inch) | 0.1181 |
| Series | Self Grip |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 3.9400 |
| Cutting Height (mm) | 24.80 |
| Cutting Height (Decimal Inch) | 0.9764 |
| Minimum Insert Width (mm) | 2.70 |
| Minimum Insert Width (Decimal Inch) | 0.1063 |
| Maximum Insert Width (mm) | 3.53 |
| Maximum Insert Width (Decimal Inch) | 0.1390 |
| Manufacturers Catalog Number | SGFH 32-3 |
