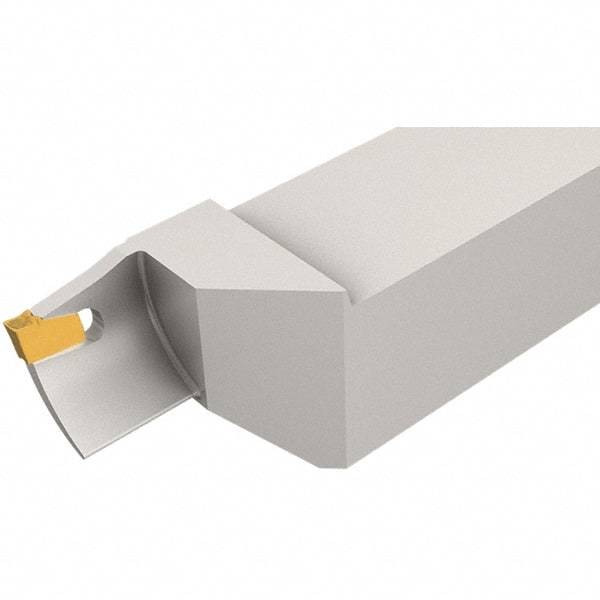

Iscar - SGFF, Internal, Right Hand, 26mm Max Depth of Cut, 3 to 3mm Groove Width, Indexable Grooving Tool Holder - GFF 3N Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 130mm OAL
Item #: 60819422
Brand: Iscar
Model #: 2300398
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0236 |
| Maximum Depth of Cut (mm) | 26.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Toolholder Style | SGFF |
| Insert Compatibility | GFF 3N |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Self-Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Self Grip |
| Maximum Groove Outside Diameter (Decimal Inch) | 3.9400 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 3.1100 |
| Complete Insert Compatibility | GFF 3N |
