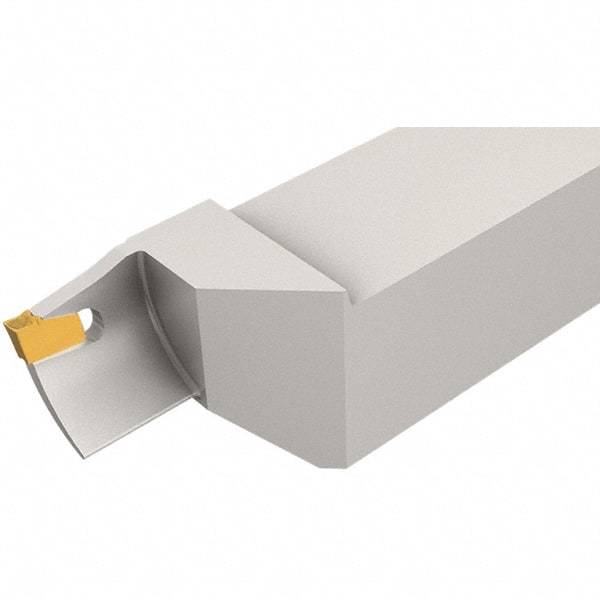

Iscar - SGFF, Internal, Right Hand, 20mm Max Depth of Cut, 2.1 to 2.1mm Groove Width, Indexable Grooving Tool Holder - GFF 2N Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 130mm OAL
Item #: 60819182
Brand: Iscar
Model #: 2300383
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Minimum Groove Width (Decimal Inch) | 0.0827 |
| Minimum Groove Width (mm) | 2.10 |
| Maximum Groove Width (mm) | 2.10 |
| Maximum Groove Width (Decimal Inch) | 0.0827 |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Toolholder Style | SGFF |
| Insert Compatibility | GFF 2N |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Self-Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Self Grip |
| Maximum Groove Outside Diameter (mm) | 61.00 |
| Minimum Axial Groove Inside Diameter(mm) | 45.00 |
| Complete Insert Compatibility | GFF 2N |
