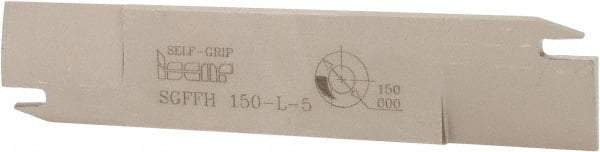

Iscar - 1.2598" Blade Height, 0.2047" Blade Width, 5.9055" OAL, Left Hand Cut, Double End Indexable Cut-Off Blade - 35mm Max Depth of Cut, SGFFH Blade
Item #: 60817145
Brand: Iscar
Model #: 2304012
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Left Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (mm) | 5.20 |
| Blade Width (Decimal Inch) | 0.2047 |
| Blade Overall Length (mm) | 150.00 |
| Blade Overall Length (Decimal Inch) | 5.9055 |
| Blade Style | SGFFH |
| Insert Style | LCMF |
| Insert Width (mm) | 5.00 |
| Insert Width (Decimal Inch) | 0.1969 |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 23.6200 |
| Maximum Depth of Cut (mm) | 35.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.3780 |
| Minimum Workpiece Diameter (Decimal Inch) | 5.9100 |
| Maximum Insert Width (Decimal Inch) | 0.1970 |
| Manufacturers Catalog Number | SGFFH 150L-5 |
