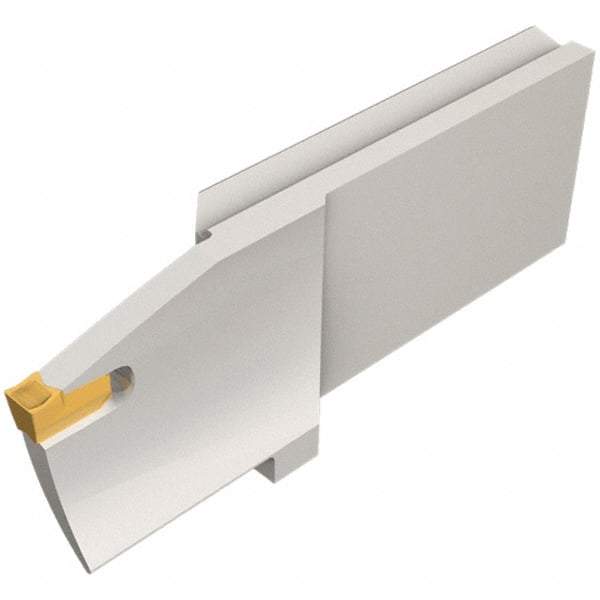

Iscar - 5" Groove Width, 28mm Max Depth of Cut, Right Hand Cut, SGFFA Indexable Grooving Blade - GFF-N Insert Style, Series Self-Grip
Item #: 60816626
Brand: Iscar
Model #: 2300286
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 5.00 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 28.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1024 |
| Blade Style | SGFFA |
| Series | Self-Grip |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 95.00 |
| Overall Length (Decimal Inch) | 3.7402 |
| Insert Style | GFF-N |
| Complete Insert Compatibility | GFF 5N |
