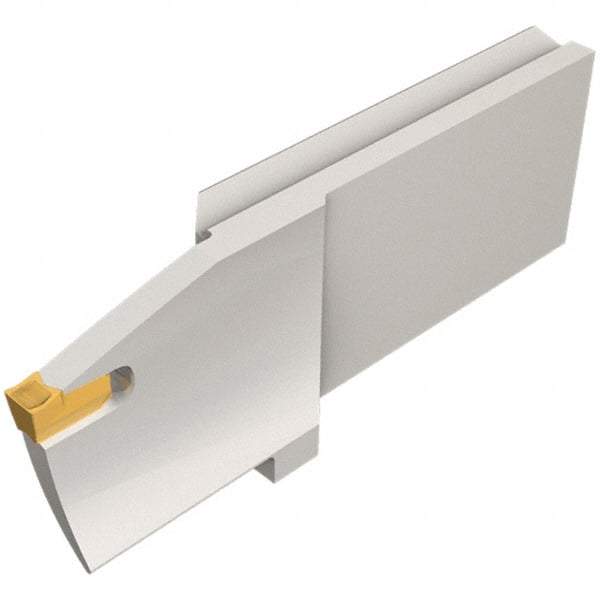

Iscar - 4" Groove Width, 25mm Max Depth of Cut, Left Hand Cut, SGFFA Indexable Grooving Blade - GFF-N Insert Style, Series Self-Grip
Item #: 60816287
Brand: Iscar
Model #: 2300275
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 4.00 |
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Blade Style | SGFFA |
| Series | Self-Grip |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Insert Style | GFF-N |
| Complete Insert Compatibility | GFF 4N |
