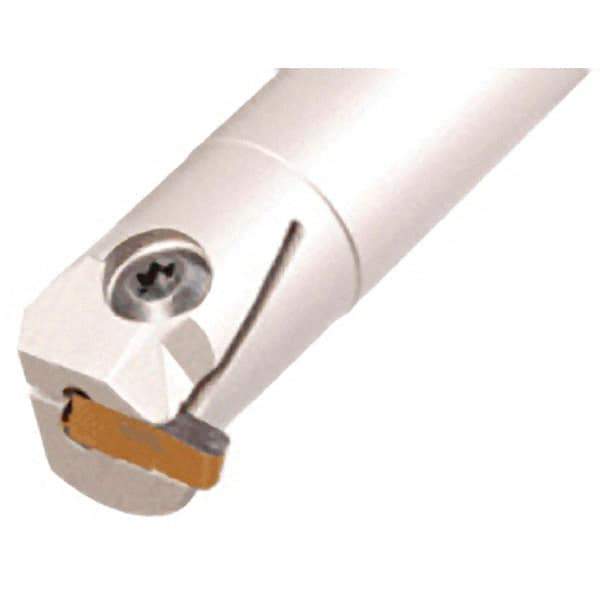

Iscar - GM, Internal, 0.196" Max Depth of Cut, 1/4" Max Groove Width, Indexable Grooving Tool Holder - GI.., GMP Insert Compatibility, 1" Shank Width, 4" OAL
Item #: 60788429
Brand: Iscar
Model #: 2800542
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Maximum Depth of Cut (Decimal Inch) | 0.1960 |
| Maximum Groove Width (Decimal Inch) | 0.2520 |
| Overall Length (Decimal Inch) | 4.0000 |
| Toolholder Style | GM |
| Insert Compatibility | GI..; GMP |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Milling |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (Decimal Inch) | 1.3800 |
| Center to Cutting Edge (Decimal Inch) | 1.4700 |
| Complete Insert Compatibility | GIPI/GIFI; GMP |
