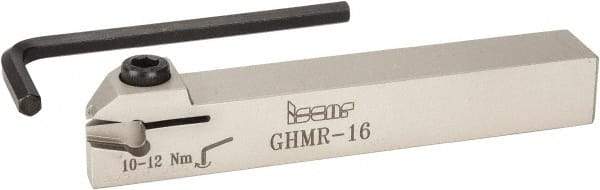

Iscar - GHMR, External, Right Hand, 4.8mm Max Depth of Cut, 0.189 to 0.189" Groove Width, Indexable Grooving Tool Holder - GI.., GPV.., TIP.. Insert Compatibility, 16mm Shank Height, 16mm Shank Width, 115mm OAL
Item #: 60787827
Brand: Iscar
Model #: 2800442
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1890 |
| Maximum Depth of Cut (mm) | 4.80 |
| Minimum Groove Width (Decimal Inch) | 0.1890 |
| Maximum Groove Width (mm) | 4.80 |
| Maximum Groove Width (Decimal Inch) | 0.1890 |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5276 |
| Toolholder Style | GHMR |
| Insert Compatibility | GI.., GPV.., TIP.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9843 |
| Shank Length (Decimal Inch) | 4.5280 |
