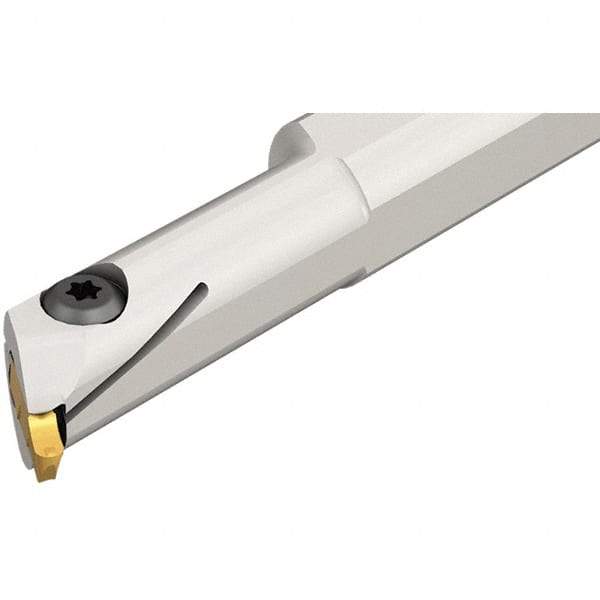

Iscar - 20mm Min Bore Diam, 160mm OAL, 20mm Shank Diam, GHIU Indexable Boring Bar - 40mm Max Bore Depth, GIPI Insert
Item #: 60787249
Brand: Iscar
Model #: 2800392
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHIU |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 40.00 |
| Maximum Bore Depth (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | GIPI |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Undercutting |
| Center to Cutting Edge (mm) | 12.50 |
| Center to Cutting Edge (Decimal Inch) | 0.4921 |
| Complete Insert Compatibility | GIPI 3.00-1.5UR; GIPI 4.00-2.0UR |
