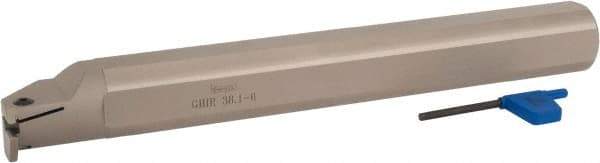

Iscar - GHI, Right Hand, 0.315" Max Depth of Cut, 0.157 to 1/4" Groove Width, Indexable Grooving Tool Holder - GIFI.., GIMY.., GINI.., GIPI.., TIPI.. Insert Compatibility, 1-1/2" Shank Width, 12" OAL
Item #: 60786845
Brand: Iscar
Model #: 2800360
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Maximum Groove Width (Decimal Inch) | 0.2520 |
| Overall Length (Decimal Inch) | 12.0000 |
| Toolholder Style | GHI |
| Insert Compatibility | GIFI..; GIMY..; GINI..; GIPI..; TIPI.. |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (Decimal Inch) | 1.8500 |
| Center to Cutting Edge (Decimal Inch) | 1.0600 |
| Manufacturers Catalog Number | GHIR 38.1-6 |
