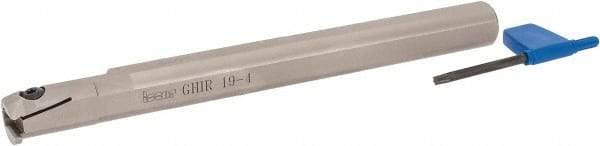

Iscar - GHI, Right Hand, 0.177" Max Depth of Cut, 0.118 to 0.189" Groove Width, Indexable Grooving Tool Holder - GIFI.., GIMY.., GINI.., GIPI.., TIPI.. Insert Compatibility, 3/4" Shank Width, 8" OAL
Item #: 60786605
Brand: Iscar
Model #: 2800337
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Maximum Groove Width (Decimal Inch) | 0.1890 |
| Overall Length (Decimal Inch) | 8.0000 |
| Toolholder Style | GHI |
| Insert Compatibility | GIFI..; GIMY..; GINI..; GIPI..; TIPI.. |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Maximum Workpiece Diameter (Decimal Inch) | 0.7870 |
| Center to Cutting Edge (Decimal Inch) | 0.5700 |
| Head Length (Decimal Inch) | 1.5000 |
| Manufacturers Catalog Number | GHIR 19-4 |
| Toolholder Material | Steel |
