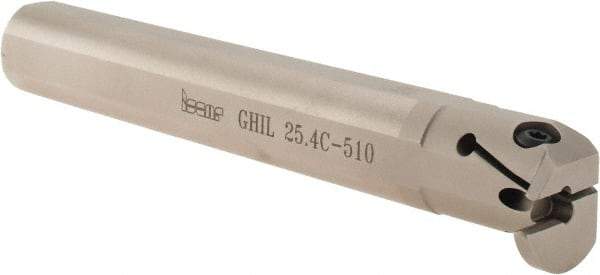

Iscar - 1-1/4" Min Bore Diam, 7" OAL, 1" Shank Diam, GHI Indexable Boring Bar - 1" Max Bore Depth, GI.. Insert
Item #: 60786282
Brand: Iscar
Model #: 2800620
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHI |
| Series | Cut Grip |
| Minimum Bore Diameter (Decimal Inch) | 1.2500 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 7.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | GI.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling; Threading |
| Center to Cutting Edge (Decimal Inch) | 0.8900 |
| Complete Insert Compatibility | GIFI 4.00E-0.40; GIFI 4.78-0.55; GIFI 5.00E-0.50; GIFI 5.28-0.20; GIMIY 404; GIPI 4.00E-0.40; GIPI 4.23-0.10; GIPI 4.78-0.55; GIPI 5.00E-0.50 |
