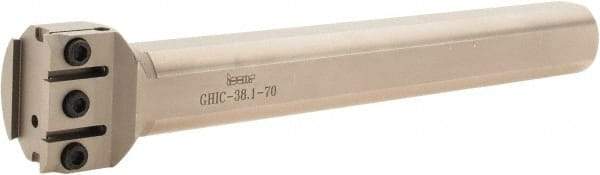

Iscar - GHIC, Internal, Neutral, 0.79" Max Depth of Cut, 1/16 to 1/4" Groove Width, Indexable Grooving Tool Holder - GF.., GI.., TGMF, TIP Insert Compatibility, 2.087" Shank Height, 1-1/2" Shank Width, 12" OAL
Item #: 60786068
Brand: Iscar
Model #: 2800618
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Minimum Groove Width (Decimal Inch) | 0.0630 |
| Maximum Groove Width (Decimal Inch) | 0.2520 |
| Overall Length (Decimal Inch) | 12.0000 |
| Toolholder Style | GHIC |
| Insert Compatibility | GF..; GI..; TGMF; TIP |
| Shank Height (Decimal Inch) | 2.0870 |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Minimum Hole Diameter (Decimal Inch) | 2.7500 |
| Head Height (Decimal Inch) | 2.0870 |
| Minimum Bore Diameter (Decimal Inch) | 2.7500 |
| Shank Diameter (Decimal Inch) | 1.5000 |
