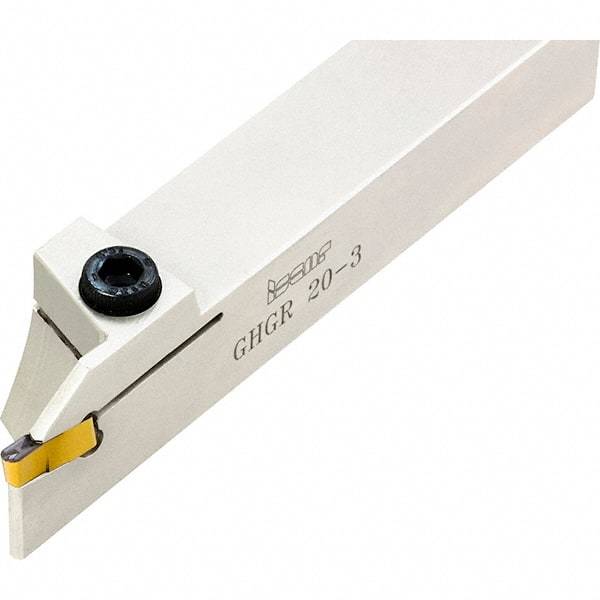

Iscar - External Thread, 0.7874" Max Depth of Cut, 3mm Min Groove Width, 120mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 20mm Shank Width, GI.. Insert Style, GHG Toolholder Style, Series Cut Grip
Item #: 60785789
Brand: Iscar
Model #: 2800263
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Maximum Groove Width (mm) | 4.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Overall Length (mm) | 120.00 |
| Series | Cut Grip |
| Toolholder Style | GHG |
| Insert Compatibility | GI.. |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7362 |
| Complete Insert Compatibility | GIF 3.48-0.20; GIF 3.56-0.20; GIF 3.74-0.20; GIF 3.98-0.20; GIF 4.00E-0.80; GIF 4.00E-0.60; GIF 4.00E-0.40; GIM 3; GIM 3.2; GIM 3C; GIM 3J; GIM 4; GIM 4C; GIM 4J |
