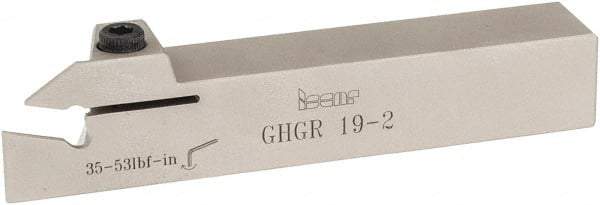

Iscar - GHG, External, Right Hand, 1.34" Max Depth of Cut, 0.016 to 3/32" Groove Width, Indexable Grooving Tool Holder - GI..,TIP.. Insert Compatibility, 3/4" Shank Height, 3/4" Shank Width, 4-1/2" OAL
Item #: 60785722
Brand: Iscar
Model #: 2800610
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.3400 |
| Minimum Groove Width (Decimal Inch) | 0.0160 |
| Maximum Groove Width (Decimal Inch) | 0.0940 |
| Overall Length (Decimal Inch) | 4.5000 |
| Toolholder Style | GHG |
| Insert Compatibility | GI..,TIP.. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3400 |
| Head Length (Decimal Inch) | 1.2300 |
| Shank Length (Decimal Inch) | 4.5000 |
