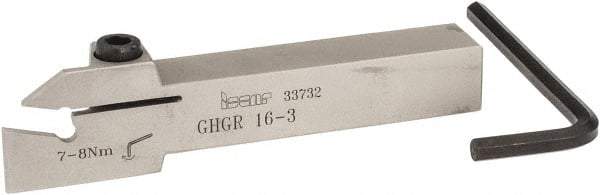

Iscar - GHG, External, Right Hand, 1.57" Max Depth of Cut, 3 to 4mm Groove Width, Indexable Grooving Tool Holder - GI..,TIP.. Insert Compatibility, 16mm Shank Height, 16mm Shank Width, 110mm OAL
Item #: 60785680
Brand: Iscar
Model #: 2800259
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.5700 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Toolholder Style | GHG |
| Insert Compatibility | GI..,TIP.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5700 |
| Head Length (mm) | 36.00 |
| Head Length (Decimal Inch) | 1.4173 |
| Shank Length (Decimal Inch) | 4.3310 |
