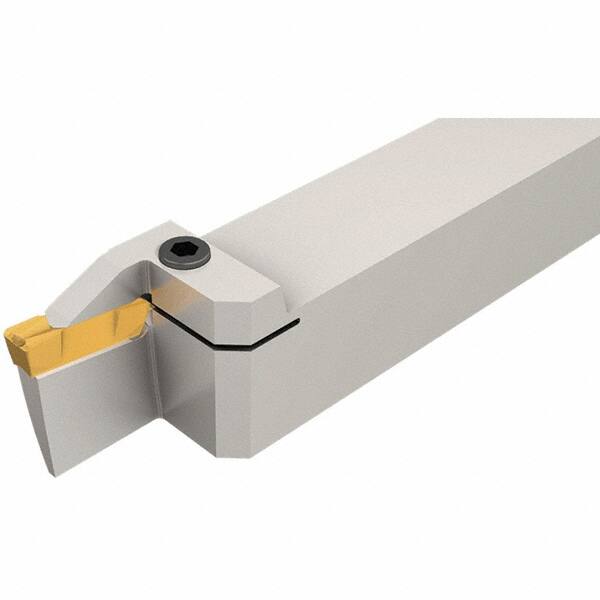

Iscar - GHFG, Internal, Right Hand, 0.984" Max Depth of Cut, 0.315" Max Groove Width, Indexable Grooving Tool Holder - GI.. 8.. Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 60785201
Brand: Iscar
Model #: 2800216
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9840 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | GHFG |
| Insert Compatibility | GI.. 8.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8400 |
| Maximum Groove Outside Diameter (Decimal Inch) | 6.3000 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 4.1300 |
| Complete Insert Compatibility | GDMU 808; GDMY 808; GIDA 80-40; GIDA 80-40-D; GIDA 80-40CB-D; GIDA 80-40YZ; GIDA 80-40YZ-D; GIF 8.00E-1.20; GIF 8.00E-0.80; GIF 8.00E-0.40; GIFG 8.00E-1.20; GIFG 8.00E-0.80 |
