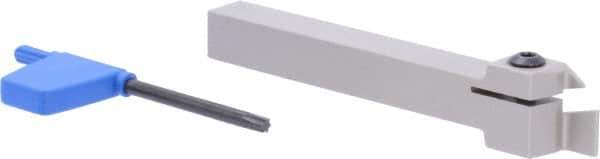

Iscar - GHD, External, Right Hand, 0.32" Max Depth of Cut, 0.016 to 1/8" Groove Width, Indexable Grooving Tool Holder - GI.. Insert Compatibility, 1/2" Shank Height, 1/2" Shank Width, 4-1/2" OAL
Item #: 60784204
Brand: Iscar
Model #: 2800141
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3200 |
| Minimum Groove Width (Decimal Inch) | 0.0160 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 4.5000 |
| Toolholder Style | GHD |
| Insert Compatibility | GI.. |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Profiling; Threading; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4700 |
| Complete Insert Compatibility | GIG 1.04-0.00; GIG 1.20-0.00; GIG 1.25-0.10; GIG 1.40-0.00; GIG 1.45-0.10; GIM 2.2J; GIM 2.4; GIM 3; GIM 3C; GIM 3J; GIMY 304 |
