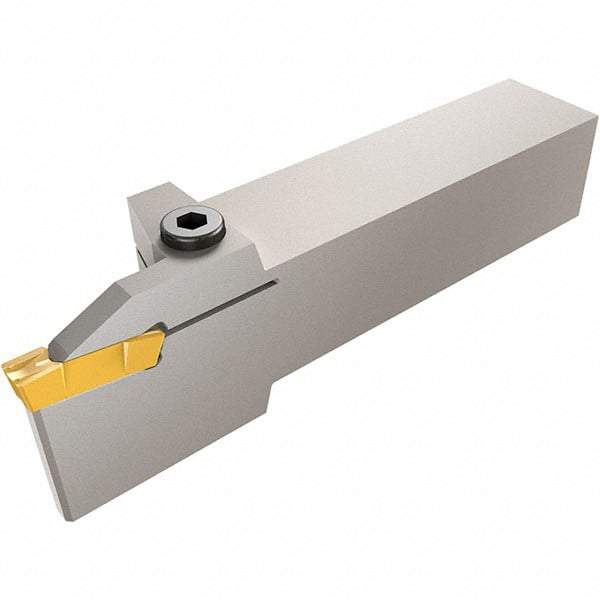

Iscar - GHD, External, Left Hand, 1" Max Depth of Cut, 0.335 to 0.408" Groove Width, Indexable Grooving Tool Holder - GD.. 1.., GIF 10.00 Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 60783701
Brand: Iscar
Model #: 2861219
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Minimum Groove Width (Decimal Inch) | 0.3350 |
| Maximum Groove Width (Decimal Inch) | 0.4080 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | GHD |
| Insert Compatibility | GD.. 1..; GIF 10.00 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8500 |
| Complete Insert Compatibility | GDMY 1050; GDMY 840F; GDPY 10.00-2.00; GDPY 10.00-1.20; GDPY 10.00-0.80; GIF 10.00E-5.00; GIF 10.00E-1.20; GIF 10.00E-0.80 |
