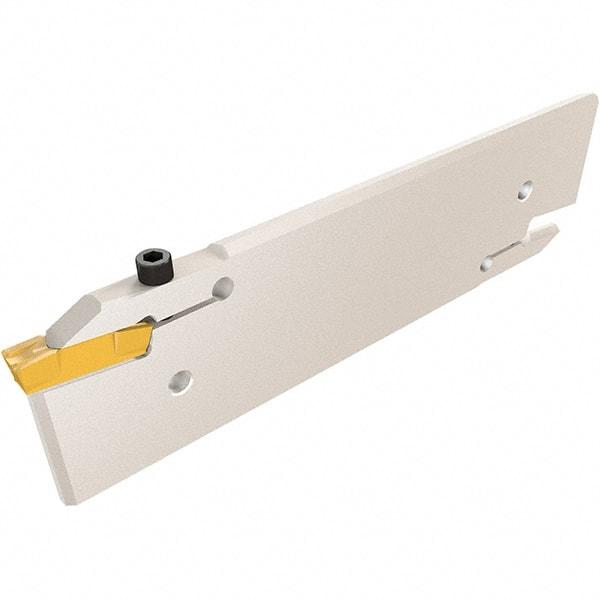

Iscar - 10 to 11mm Groove Width, 70mm Max Depth of Cut, Neutral Cut, CGHN Indexable Grooving Blade - GDMY (Full Radius), GDMY-F, GDPY, GIF-E (W=8, 10 Full Radius), GIF-E (W=8, 10) Insert Style, Series Cut Grip
Item #: 60782307
Brand: Iscar
Model #: 2861220
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 10.00 |
| Minimum Groove Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 70.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.7559 |
| Blade Style | CGHN |
| Series | Cut Grip |
| Blade Height (mm) | 52.60 |
| Blade Height (Decimal Inch) | 2.0709 |
| Blade Width (mm) | 9.20 |
| Blade Width (Decimal Inch) | 0.3622 |
| Maximum Groove Width (mm) | 11.00 |
| Maximum Groove Width (Decimal Inch) | 0.4331 |
| Overall Length (mm) | 190.00 |
| Overall Length (Decimal Inch) | 7.4803 |
| Insert Style | GDMY (Full Radius); GDMY-F; GDPY; GIF-E (W=8, 10 Full Radius); GIF-E (W=8, 10) |
| Complete Insert Compatibility | GDMY 1050; GDMY 840F; GDPY 10.00-2.00; GDPY 10.00-1.20; GDPY 10.00-0.80; GDPY 11.00-2.00; GDPY 11.00-1.20; GIF 10.00E-5.00; GIF 10.00E-1.20; GIF 10.00E-0.80 |
