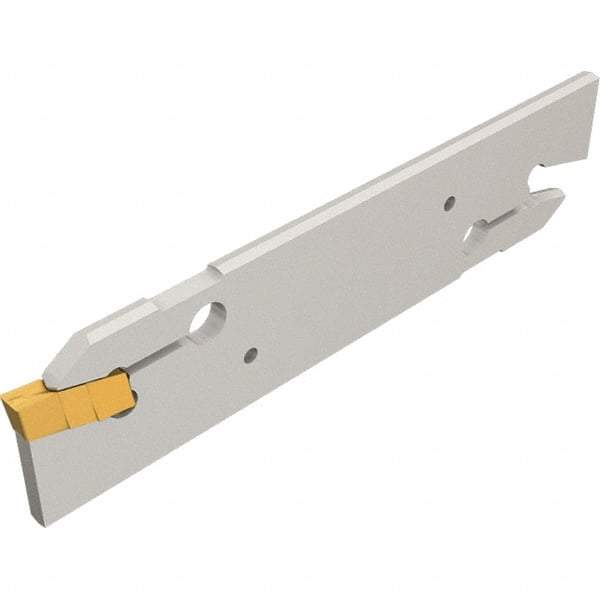

Iscar - 3.5 to 4.5mm Groove Width, 15mm Max Depth of Cut, Neutral Cut, CGHN Indexable Grooving Blade - GIF, GIF-E (W=4-6), GIM-C, GIM-J, GIM-W Insert Style, Series Cut Grip
Item #: 60782067
Brand: Iscar
Model #: 2800003
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Neutral |
| Minimum Groove Width (mm) | 3.50 |
| Minimum Groove Width (Decimal Inch) | 0.1378 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Blade Style | CGHN |
| Series | Cut Grip |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Blade Width (mm) | 3.20 |
| Blade Width (Decimal Inch) | 0.1260 |
| Maximum Groove Width (mm) | 4.50 |
| Maximum Groove Width (Decimal Inch) | 0.1772 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Style | GIF; GIF-E (W=4-6); GIM-C; GIM-J; GIM-W |
| Complete Insert Compatibility | GIF 4.00E-2.00; GIMN 406; GIMY 420; GIP 4.00E-2.00; GITM 4.00K-2.00 |
