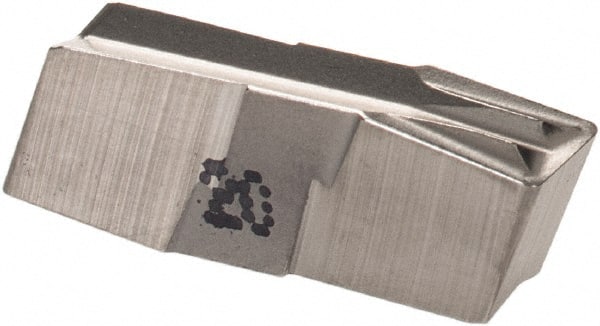

Grooving Insert: GIF400E040F IC20, Solid Carbide Uncoated, Neutral, 3.99 mm Cutting Width, 13 mm Max Depth, Series Cut-Grip
Item #: 60756319
Brand: Iscar
Model #: 6400080
Product Specifications
| Insert Style | GIF |
| Insert Size Code | 400E040 |
| Insert Size | 400E040 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC20 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Cutting Width (mm) | 3.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Maximum Depth of Cut (mm) | 13.00 |
| Insert Holding Method | Self Grip |
| Cutting Height (mm) | 5.00 |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Corner Radius (mm) | 0.41 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning; Parting |
| Series | Cut Grip |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.6020 |
| Overall Length (mm) | 15.29 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | S; H; K; M; N |
| Iso Code | GIF 4.00E-0.40 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | GIF 4.00E-0.40 |
| Chip Breaker | F |
| Full Radius | No |
| Coating/Finish | Uncoated |
| Single Or Double End | Double |
